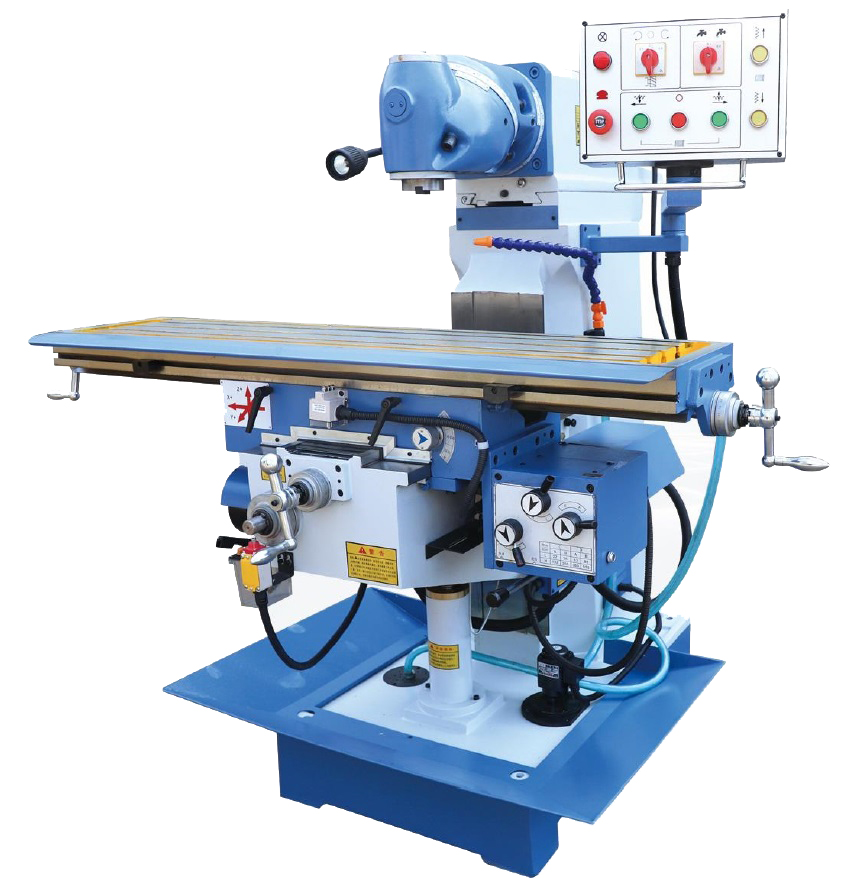

X6232 UNIVERSAL ROTARY HEAD MILLING MACHINE

X6232 universal rotary head milling machine can realize both vertical and horizontal milling functions. Two section rotary milling head and spindle can rotate and adjust at any angle. It can be used to process shells and molds. The worktable is motorized in X and Y directions and electrically lifted in Z direction. It can process all kinds of plane, inclined plane, groove gear, T-groove, etc. It can be equipped with digital display ruler, combined pressing plate, dividing head, rotary worktable and other milling machine accessories to expand the range of machining.
Availability:
Quantity:
Inquire Add to Basket

SpecificationUnitsX6232
Spindle end to table distancemm120-490
Distance from spindle center to column guide surfacemm0-500
Spindle speedrpm35-1600
Table sizemm1250*320
Table travelmm600/320/370
Vartical milling head rotary°360
Longitudinal/horizontal motorized feed speed of worktablemm/min22-555(8step)810(rapid)
Spindle taper
7:24   ISO40
Vartical motor lifting speed of worktablemm/min560
T-slotmm3/14/70
Main motorkw2.2
Motor power of lfting platformw750
Motor power of worktable motorized feedw750
Cooling pump motorw90
Overall dimensions(LxWxH)mm1700*1560*1730
Weightkg2100
