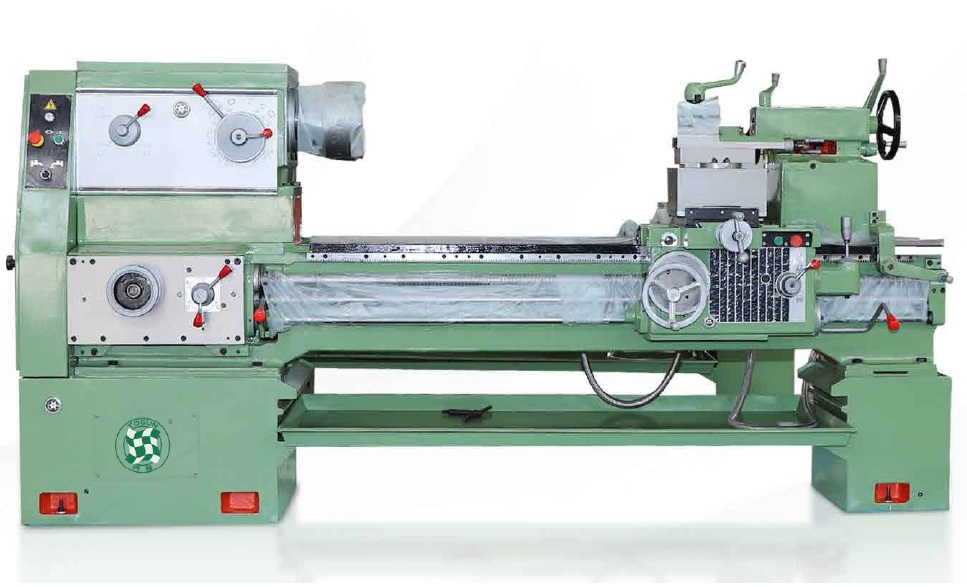

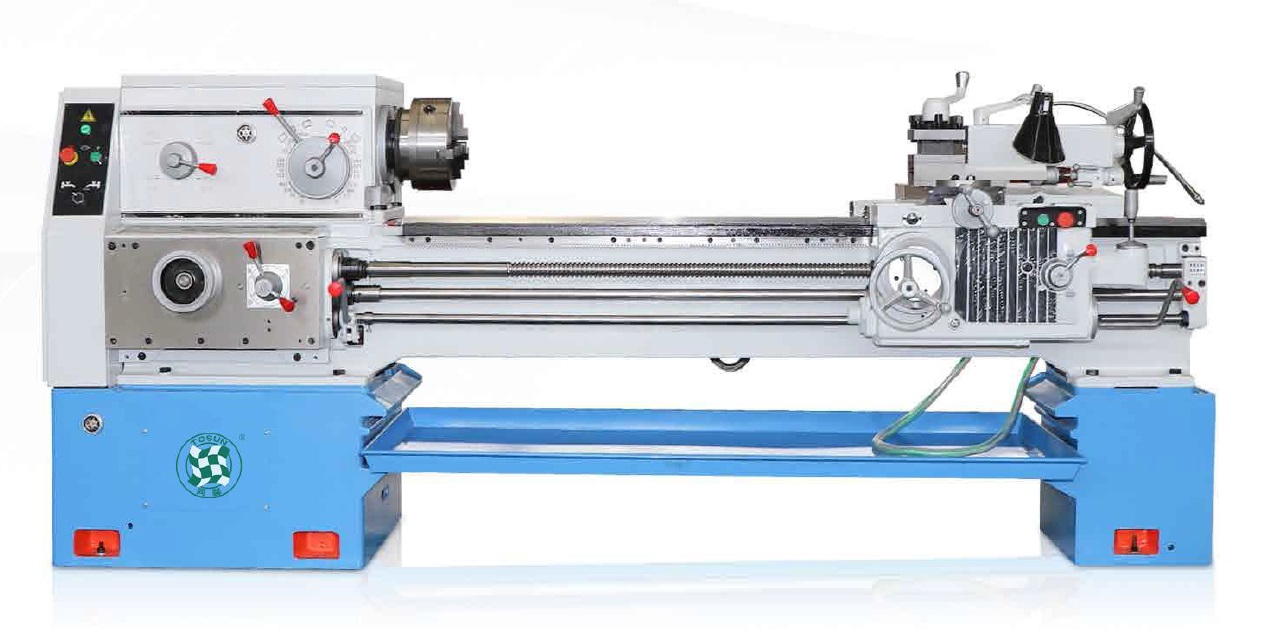

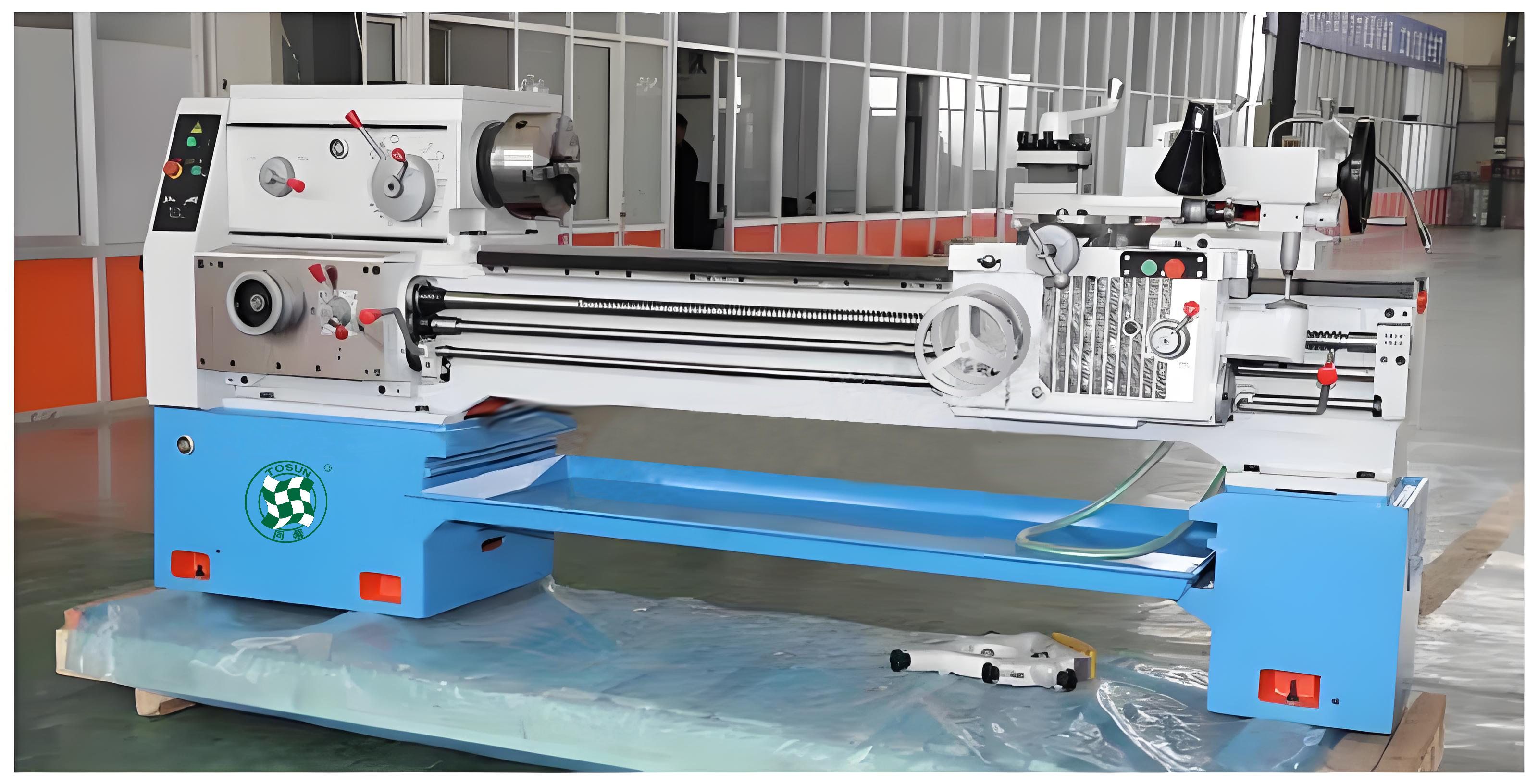

CA SERIES ORDINARY HORIZONTAL LATHE

CA series ordinary horizontal lathe is suitable for turning internal and external cylindrical surfaces, conical surfaces and other rotating surfaces, turning all kinds of metric, British, modulus and diameter pitch threads, drilling and broaching oil grooves. It is a highly versatile horizontal lathe, which is widely applicable to the batch processing of various shaft and disc parts.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Specifications		CA6140	CA6150	CA6161	CA6180
Max. Workpiece Diameter of Bed		400mm	500mm	610mm	800mm
Max. workpiece diameter of tool holder		220mm	300mm	370mm	540mm
Max.Workpiece Length		1000/1500/2000/2200/3000
width of bed		400mm
Cutter rod section		25×25mm
Spindle axis	Spindle speed range	16-1400rpm(24steps)
	Spindle bore	52mm, (80mm), [105mm]
	Mores	No.6 (MT6) (Φ90 1:20) [Φ113:20]
feed	Feed Quantity	(64 kinds) (for each)
	Metric thread	(1-192mm) (44 kinds)
	English thread	(1-24tpi) (21kinds)
	Modular thread	0.25-48 (module 39 kinds)
	Diameter thread	1-96DP (37 kinds)
Tailstock	Tailstock spindle travel	150mm
	Tailstock spindle diameter	75mm
	Taper of tailstock spindle hole	Morse NO.5 (MT5)
Main motor		7.5KW(10HP)
