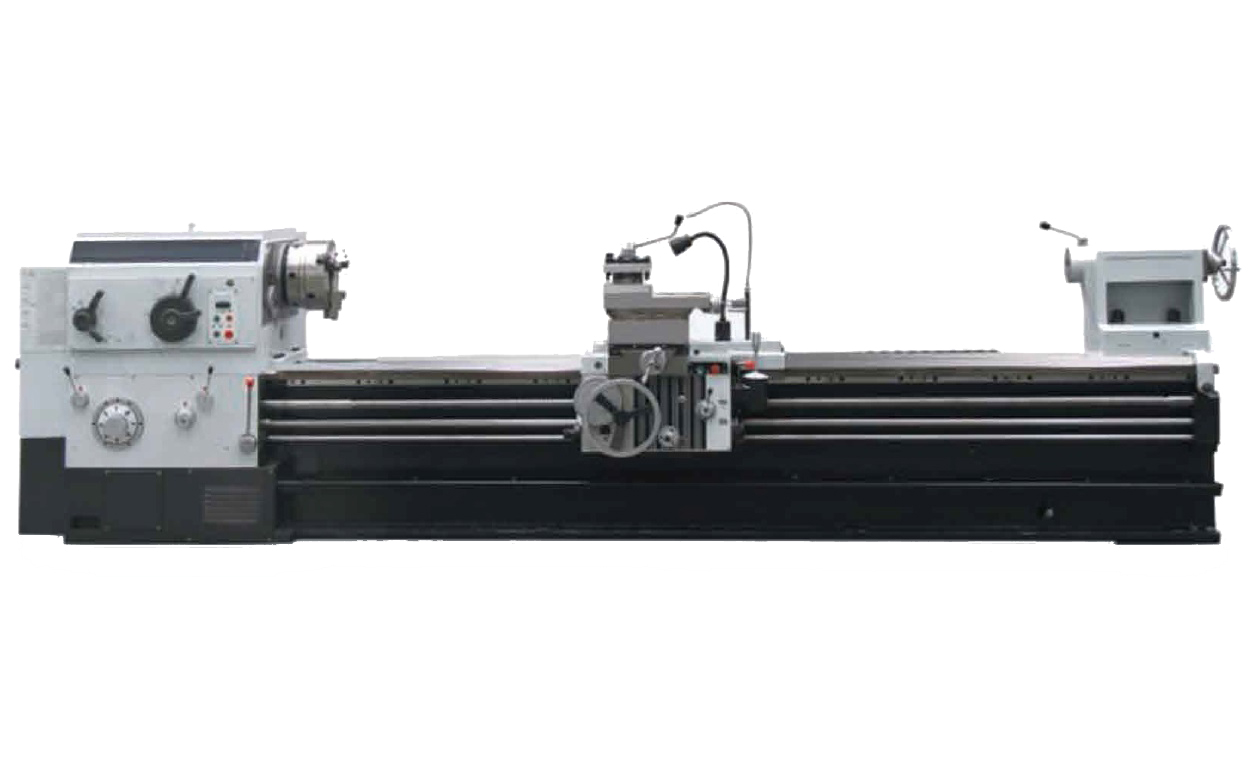

CW SERIES UNIVERSAL LATHE

CW series lathe machine is universal metal machining equipment for metal processing, mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, and turning internal and external pipe threads such as metric, inch, module, DP threads, etc., meanwhile this series is also used to drill holes in bar material and make oil groove, this series lathe is able to process metal materials including cast iron, steel and non ferrous metals.

Availability:

Quantity:



Inquire Add to Basket

Product Description

One piece bed adopts high strength iron to ensure rigidity and precision.

Ultrasonic frequency quenched guide-ways ensure good wear-resistance.

Carriage and guide-way contact surface use Turcite B to maintain accuracy.

Specifications	CW6163B	CW6263B	CW6180B	CW6280B	CWY6180	CWY6280	CWY61100	CWY62100
Swing over bed (mm)	630		800		800		1000
Swing over gap (mm)		800		1000		1000		1200
Swing over cross slide (mm)	350		520		480		680
Distance between centers (mm)	1500/2000/3000/4000/5000/6000
Guideway width (mm)	550		550		600		600
Max. load capacity (T)	3		3		4		4
Spindle bore (mm)	104		104		104		104
Spindle bore taper	Metric ø120/MT5		Metric ø120/MT5		Metric ø120/MT5		Metric ø120/MT5
Spindle nose type	C11		C11		C11		C11
Spindle speed steps	FWD. 18 steps		FWD. 18 steps		FWD. 18 steps		FWD. 18 steps
Spindle speed range (rpm)	7.5-1000		6-800		5.4-720		5.4-720
Chuck (mm)	ø315 3-jaw manual				ø400 3-jaw manual
Turret/tool post	Manual turret 4 position
Tool shank size (mm)	30x30		30x30		32x32		32x32
X axis travel (mm)	320		420		420		420
Z axis trave (mm)	1350/1850/2850/3850/4850/5850
X axis feed grade/range (mm/r)	64/0.05-12.15		64/0.05-12.15		64/0.05-12.15		64/0.05-12.15
Z axis feed grade/range (mm/r)	64/0.1-24.3		64/0.1-24.3		64/0.1-24.3		64/0.1-24.3
X axis rapid traverse (mm/min)	2300		2300		2300		2300
Z axis rapid traverse (mm/min)	4000		4000		4000		4000
Metric thread grade/range (mm)	50/1-240		50/1-240		50/1-240		50/1-240
Inch thread grade/range (T.P.I)	26/14-1		26/14-1		26/14-1		26/14-1
Module thread grade/range (mm)	53/0.5-120		53/0.5-120
DP thread grade/range (D.P)	24/28-1		24/28-1
Tailstock quill diameter (mm)	ø100		ø100		ø120		ø120
Tailstock quill taper	MT5		MT5		MT6		MT6
Tailstock quill travel (mm)	250		250		250		250
Main spindle motor (KW)	11		11		11		11
Rapid traverse motor (KW)	1.1		1.1		1.1		1.1
Coolant pump motor (KW)	0.125		0.125		0.125		0.125
Width X Height (mm)	1400x1450		1500x1450		1550x1650		1750x1750

Specifications	CW61100B	CW61125B	CW61140B	CW61160B
Swing over bed (mm)	1000	1250	1400	1600
Swing over cross slide (mm)	610	850	1000	1200
Distance between centers (mm)	1500/2000/3000/4000/5000/6000
Guideway width (mm)	755
Max. load capacity (T)	6
Spindle bore (mm)	130
Spindle bore taper	Metric ø140/MT6
Spindle nose type	A2-15
Spindle speed steps	FWD. 21 steps
Spindle speed range (rpm)	3.15-315
Chuck (mm)	ø1000 4-jaw manual
Turret/tool post	Manual turret 4 position
Tool shank size (mm)	45x45
X axis travel (mm)	520	620	620	620
Z axis trave (mm)	1350/1850/2850/3850/4850/5850
X axis feed grade/range (mm/r)	56/0.05-6
Z axis feed grade/range (mm/r)	56/0.1-12
X axis rapid traverse (mm/min)	1870
Z axis rapid traverse (mm/min)	3740
Metric thread grade/range (mm)	44/1-120
Inch thread grade/range (T.P.I)	31/28-3/8
Module thread grade/range (mm)	45/0.5-60
DP thread grade/range (D.P)	30/56-1
Tailstock quill diameter (mm)	ø160
Tailstock quill taper	MT6
Tailstock quill travel (mm)	300
Main spindle motor (KW)	22
Rapid traverse motor (KW)	1.5
Coolant pump motor (KW)	0.125
Width X Height (mm)	2000x1800	2000x1950	2250x2050	2250x2150
Length (mm)	4600/5100/6100/7100/8100/9100
