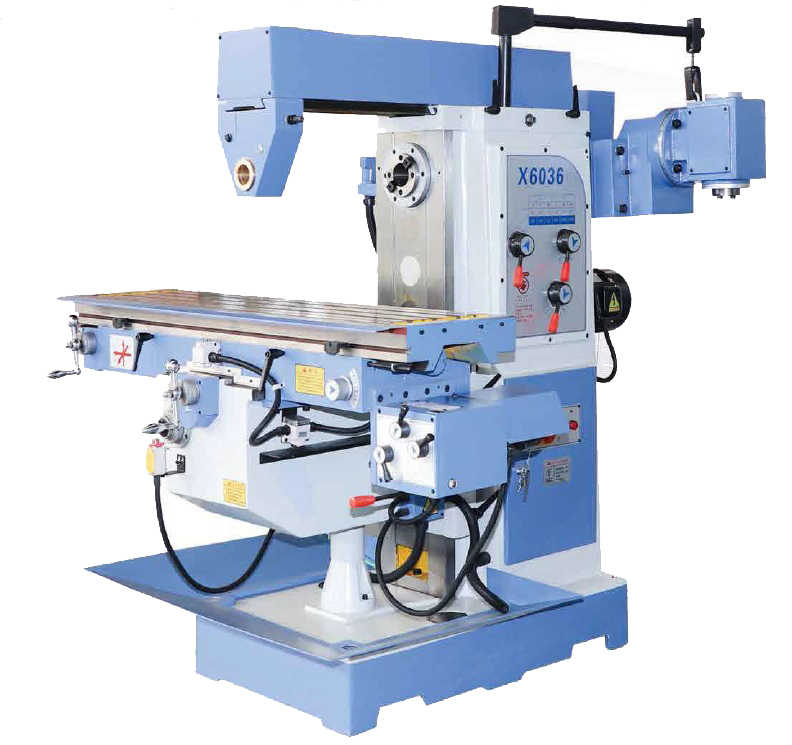

X6036 HORIZONTAL MILLING MACHINE

X6036 horizontal milling machine can process various planes, slopes, grooves, etc. with various cylindrical milling cutters, disc milling cutters, angle milling cutters, forming milling cutters and end milling cutters. It can process parts with special shapes such as gears, cams, arc grooves and helical surfaces. It is equipped with milling machine accessories such as universal milling head, circular worktable and indexing head. It can also process holes for medium and small parts after using boring cutter bar. Add an end milling head and use an end milling cutter for cutting.
Availability:
Quantity:
SpecificationsX6036AX6036B
Spindle taper taper7:24   ISO507:24   ISO50
Spindle end to work surface distance(mm)0-3800-380
Distance from center of the spindle to the vertical guide surface of the bed(mm)175175
Spindle speed ranges (rpm)60-1800 (12 steps)60-1800(12 steps)
Workbench size (m)1250×3601500×360
Table travel (longitudinal/horizontal/vertical) (mm)600/320/3801000/320/380
Worktable longitudinal/transverse feed motor speed (mm/min)22-555(8steps)22-555(8steps)
810(rapid)810(rapid)
Worktable vertical maneuvering speed (mm/min)590590
Workbench T-slot number/width/spacing(m)3/18/803/18/80
Man drive motor power(kw)44
Workbench motorized feed motor power(w)750750
Lifting table feed motor power (w)11001100
Lifting table lint feed motor power (w)9090
Cooling pump flow (liters per minute)2525
Dimensions (mm)2000×1600   × 18002220x1790x1980
