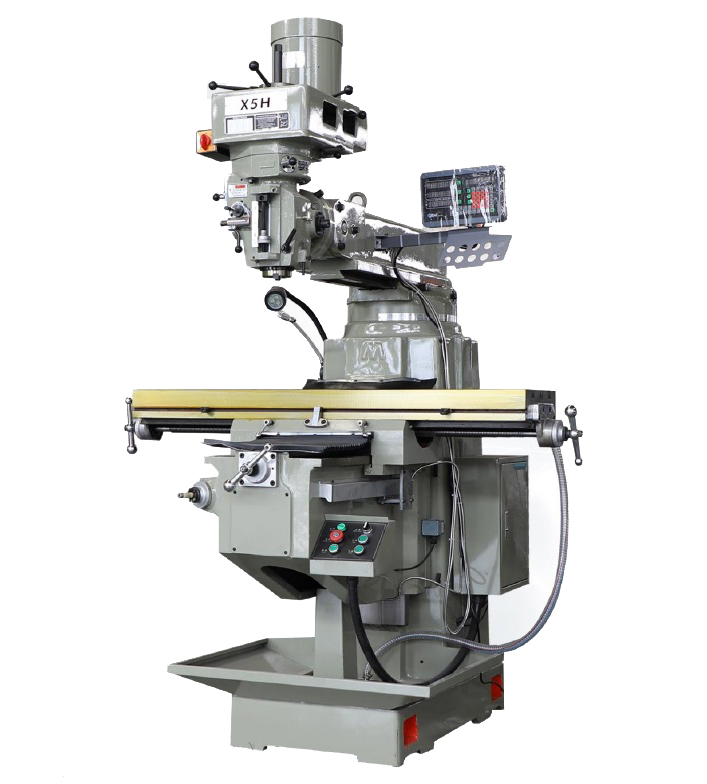

The main components such as the base, the body, the worktable, the middle slide, and the lifting slide are all cast with precision materials, and after artificial aging treatment, the machine tool is stable for long-tem use.
The milling head is equipped with a turret milling machine head, and the spindle is equipped with two feeding methods of manual and micro-motion, which is convenient and accurate for processing; the milling head can rotate 90° left and right, and the rocker arm can not only be retracted back and forth, which greatly increases the working range of the machine tool.
There are three types of manual feed, motorized feed and motorized fast forward in the vertical and horizontal directions of the worktable. The motorized feed can obtain 8 different feed speeds for different processing requirements; the feed can make the workpiece reach the processing position and shorten the processing time.
The Z-direction lifting of the lifting table can be realized manually, which eliminates the unsafe factor.
The X-direction travel of the worktable can reach 810mm, and the X, Y, Z three-direction guide rial pairs are quenched by super audio frequency.
The manual lubricating device can forcibly lubricate the vertical, horizontal and vertical lead screws and guide rails, reduce the wear of the machine tool, and ensure the efficient operation of the machine tool.
| Spindle hole taper | ISO40 |
| T-slots quantity/size | 3/16/65 |
| Distance from spindle end face to worktable (mm) | |
| Telescopic boom stroke (mm) | |
| Spindle speed range (r/min) | |
| Table size (m) | |
| Longitudinal stroke of worktable (mm) | |
| Transverse stroke of worktable (mm) | |
| Vertical stroke of worktable (mm) | |
| Spindle stroke (mm) | |
| Spindle feed speed (mm/r) | |
| Table vertical/horizontal motorized feed speed | stepless |
| Main motor power (kw) | |
| Left and right rotation of milling head | |
| Back and forth rotation of milling head | |
| Overall dimension (mm) |
