FLAT BED CNC LATHE MACHINE

CAK series CNC horizontal lathe has the characteristics of high precision, high power, high rigidity, etc. Its main components and structures have been optimized. It is the preferred equipment for machining shafts, discs, sleeves, special surfaces and screw work-pieces.

Availability:

Quantity:



Inquire Add to Basket

Product Description

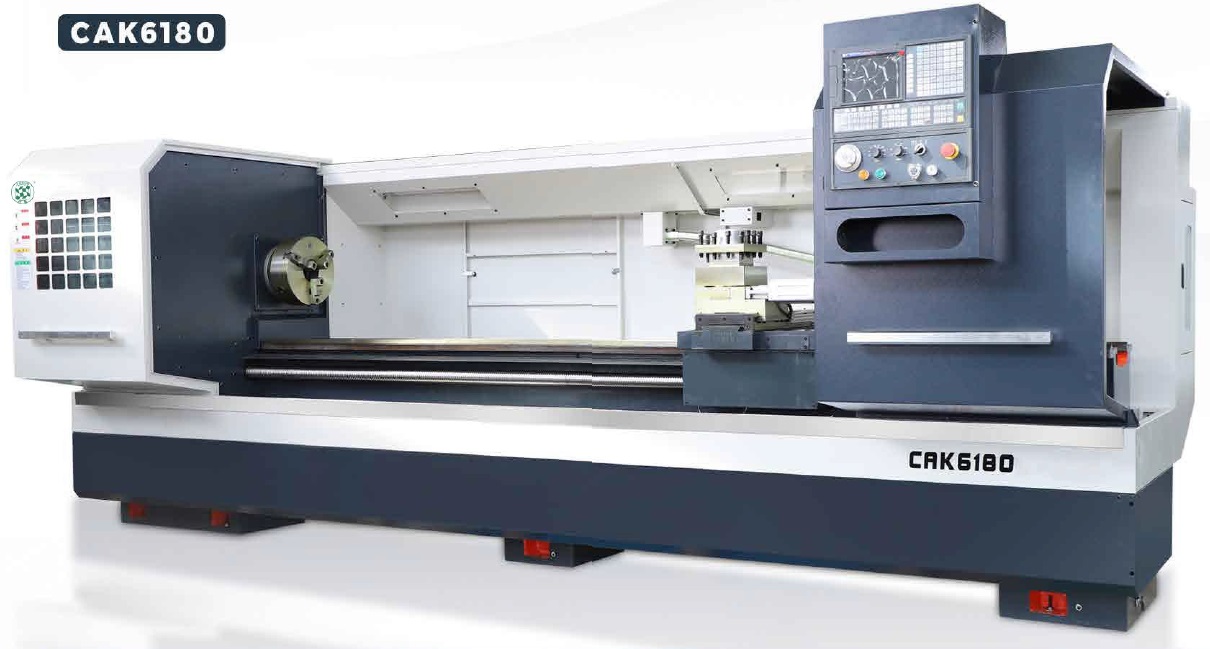

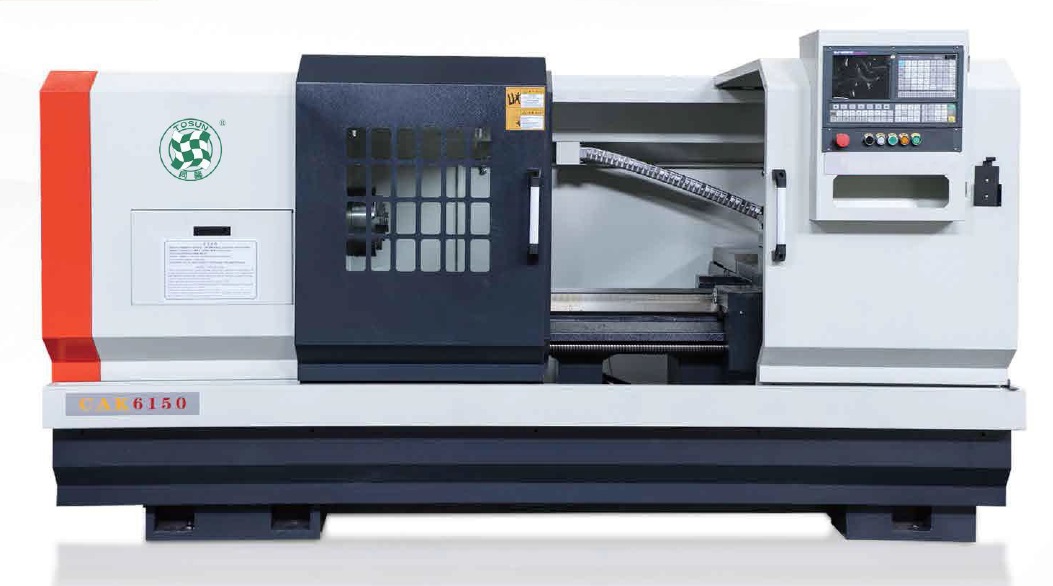

Specifications	CAK6150	CAK6166	CAK6180
Max Swing over bed	500mm	660mm	800mm
Max pieceworker length	750/1000/1500/2000/3000mm
Spindle taper	No.6MT6 [φ90 1:20(B)][113 1:20(C)]
Chuck size	C6[D8(B,C)]
Spindle bore dia.	φ52mm [φ80mm(B)][φ105mm(C)]
Ranged spindle speeds 3 steps (Auto.change gear)	Single spindle
	100~1600r/min
	Three steps

Tail stock slaver travel	150mm
Tail stock sleeve taper	MT5
Positioning accuracy	±0.015mm
Re-positioning accuracy	±0.006mm
X/Z rapid traverse	4/6m/min
Spindle Motor	7.5kw
