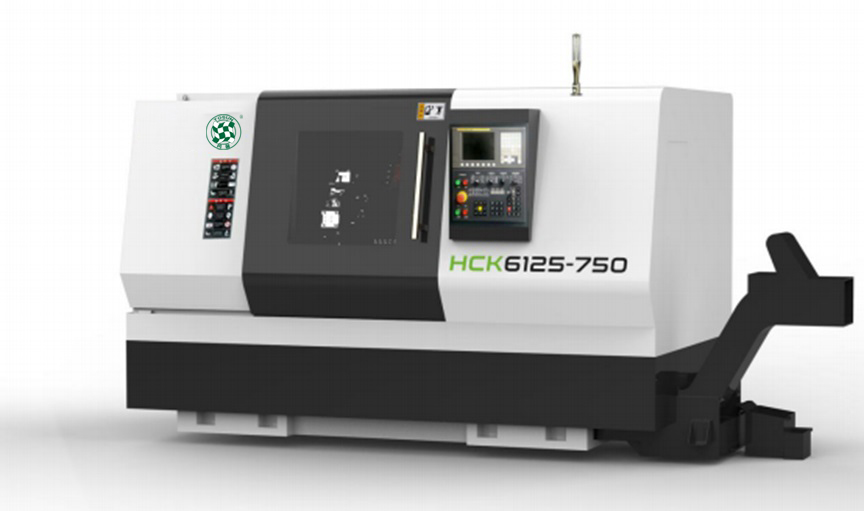

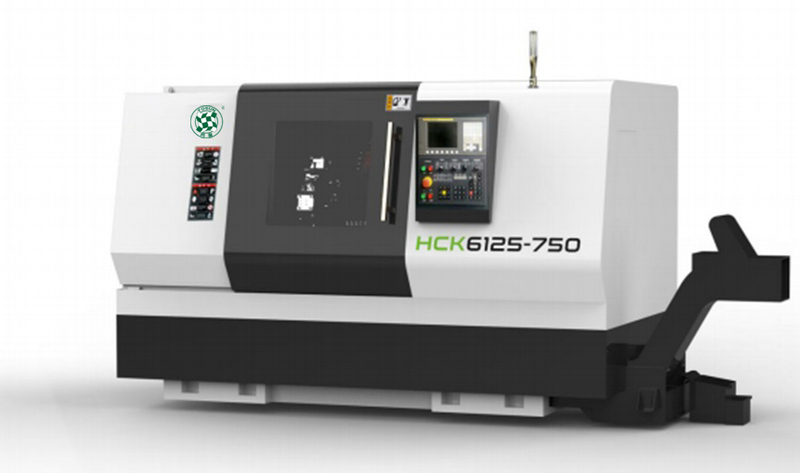

| Model | Unit | HCK6125-550 | HCK6125-750 | HCK6163-750 |
| Bed inclination | 45°/55° L shape integral casting bed | |||
| Rail span | mm | 570 | 570 | 640 |
| Max. swing over bed and trailer | mm | ⌀500 ⌀280 | ⌀500 ⌀280 | ⌀630 ⌀350 |
| X, Z, Y axis travel | mm | 250 550 ±45(90) | 250 750 ±45(90) | 350 1500 ±45(90) |
| Max. turing diameter | mm | ⌀420 | ⌀420 | ⌀580 |
| X, Z axis rapid feed | m/min | 16 | 16 | 16 |
| X, Z ball screw | 40*10 C2 40*10 C2 | 40*10 C2 40*10 C2 | 40*10 C2 50*12 C3 | |
| Spindle nose type/spindle hold dia | mm | A2-6 ⌀65 | A2-6 ⌀65 | A2-8 ⌀105 |
| Spindle speed | rpm | 3500/3000 | 3500/3000 | 2500 |
| Spindle motor power | kw | 15 | 15 | 15 |
| Hydraulic chuck/Cylinder type | 8 inch for both | 8 inch for both | 10 inch for both | |
| Tailstock sleeve diameter | mm | ⌀80 | ⌀80 | ⌀100 |
| Taper of tailstock sleeve/tool turret type | BMT55 power turret | |||
| Hydraulic station/Control system | 60L four station valve with air cooling/GSK (FANUC/SIEMENS) | |||
| X/Y/Z axis servo motor power | Nm | 15/12/18 | 15/12/18 | 18/12/18 |
| Positioning accuracy/repeated accuracy | mm | 0.005 0.003 | ||
| Overall diemension (LxWxH) | mm | 3620*2025*2355 | 3820*2025*2355 | 4500*2200*2600 |
| Weight (about) | kg | 5000 | 5200 | 7000 |
