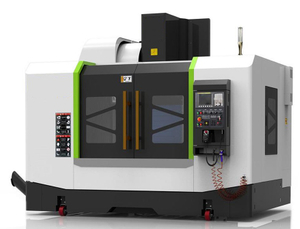

High Precision CNC Vertical Machining Center VMC1160

  • This product is a semi-closed-loop vertical machining center with servo direct control of X, Y, and Z axes. The X, Y, and Z axes are roller linear guides. The guide rails are wide, have a large span, and have a compact structure. The spindle is driven by a servo motor through a synchronous belt.
  • It can realize one-time clamping of various complex parts such as disks, plates, shells, cams, and molds, and can complete various processes such as drilling, milling, boring, expanding, reaming, and rigid tapping.
  • It is suitable for the production of multiple varieties and small and medium-sized batches of products, and can meet the processing of complex and high-precision parts. It can be equipped with a fourth rotating axis to meet the processing requirements of special parts.
Availability:
Quantity:

Features

  • The main basic parts such as base, slide seat, workbench, column, spindle box and so on are made of HT300 cast iron; the base and slide seat are box-type structures, and the compact and reasonable symmetrical rib structure ensures high rigidity, bending resistance and shock absorption. The A-shaped bridge-span column and internal grid-like ribs effectively ensure the rigidity and accuracy during strong Z-axis cutting; the basic parts are made of resin sand and have undergone aging treatment, which guarantees the stability of the long-term performance of the machine tool.

  • The X, Y, and Z axes all use linear roller guides, combined with automatic forced lubrication, to reduce the frictional resistance of the feed motion, reduce low-speed crawling, and improve the accuracy and life of the machine tool.

  • The Z-direction drive motor adopts high torque drive and has a power-off braking device.

  • The feeds in the three directions of X, Y and Z adopt high-speed and silent ball screws; The drive motor is directly connected to the screw through an elastic coupling, and the feed servo motor directly transmits power to the high-precision ball screw without backlash, ensuring the positioning accuracy and synchronization of the machine tool;

  • It adopts a high-speed, high-precision and high-rigidity spindle unit with strong axial and radial load-bearing capacity, and the maximum speed can reach 8000rpm;

  • The spindle adopts a central air blowing structure. When the spindle releases the tool, the central high-pressure gas is quickly used to clean the inner cone of the spindle to ensure the accuracy and life of the tool clamping;

  • The guide rails and screws in the three directions of X, Y, and Z all adopt fully enclosed protective devices to ensure the cleanliness of the screws and guide rails and the transmission and movement accuracy and life of the machine tool;

  • The machine tool adopts a fully protective structure design, which is easy to operate, safe and reliable;

  • Use a reliable centralized automatic lubrication device to automatically lubricate each lubrication point of the machine tool intermittently and quantitatively, and the lubrication time can be adjusted according to the working conditions;

  • Adopt 24 disc tool magazines produced by Taiwanese professional manufacturers, which have the advantages of accurate tool change, short time, high efficiency and high reliability; the tool magazine movement has a damping structure, which can reduce the impact during movement and ensure the use of the tool magazine Long life; pneumatic drive, easy to use, shortest path tool change;

  • The machine tool operating system adopts ergonomic principles. The operating box is independently designed and can rotate by itself, making it easy to operate.


Item

Unit

Description

Spindle

Belt spindle specifications


BT40-150

Tool handle rivet standard


GB/T10944.3-JF40-45

Speed

r/min

60~8000

Spindle end   face to worktable

mm

120-720

Spindle   center to column

mm

710

Worktable

Worktable size

mm

1200×600

T-slot number, width and spacing

mm

5-18×100

Max. load

kg

800

Guide rail

Guide rail type


Roller linear guide for X, Y, Z axis

Guide rail width for X, Y, Z axis

mm

45/45/45

Roller guide screw

X axis

mm

φ40×12

Y axis

mm

φ40×12

Z axis

mm

φ40×12

Travel

X axis

mm

1100

Y axis

mm

600

Z axis

mm

600

Fast moving speed

X axis

m/min

32

Y axis

m/min

32

Z axis

m/min

24

Cutting feed speed


m/min

1-10000

Servo motor

Spindle motor power

Kw

11KW

X, Y axis motor power

Kw

2.9/2.9

Z axis motor power

Kw

4.4

ToolsOKADA

Max.   tool diameter (adjacent/null)

mm

φ80/φ150

Max.   tool length

mm

300

Max.   tool weight

kg

8

Type and number


BT40-24T

Tool changing speed (tool to tool)

S

2.5

Cooling

Cooling pump   power

W

450

Cooling pump   flow

L/min

33

Cooling box   volume

L

350

Lubrication type


Automatic

Positioning accuracy for X, Y, Z axis

mm

0.016/0.012/0.012

Repeatability accuracy for X, Y, Z axis

mm

0.01/0.006/0.006

Power

AC voltage

V

3  380±10%

Frequency

Hz

50±10%

Total power consumption

KVA

25

Total air pressure

MPa

0.5-0.7

Machine weight

kg

6800

Machine sizeL×W×H

mm

3100×2500×2800mm



1. CNC system: KND2000M (Optional Mitsubishi, Siemens, etc.)

2. Taiwan spindle unit BT40-150-8000rmp;

3. Servo spindle motor: motor power 11KW;

4. Taiwan (Okada) BT40-24 disc tool magazine;

5. X/Y/Z three-axis roller linear guide (45/45/45);

6. Moving hand pulse;

7. Hand-held air gun;

8. Z-axis rigid tapping;

9. Centralized automatic oil lubrication;

10. External cooling system (including cooling pipe, chip tray, cooling box, cooling pump);

11. Manual rear chip removal;

12. External air cooling;

13. Fully protective sheet metal outer shield and internal screw and guide rail shields;

14. Adjustment horn;

15. Work lighting;

16. Work warning light.
