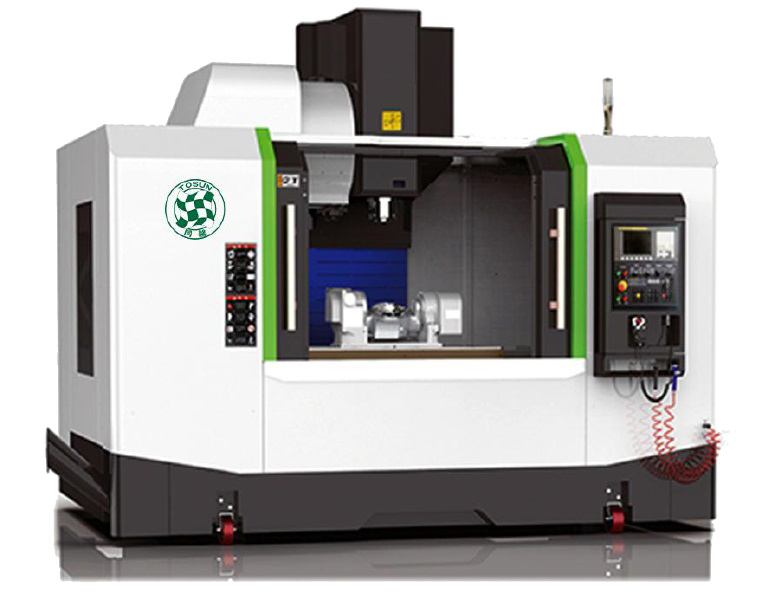

The machine tool base, columns, spindle box, cross slide, and worktable are all made of high-strength lost foam casting technology. The internal metallographic structure is stable, ensuring the high stability of the basic parts. The casting structure has undergone machine tool dynamics analysis and finite element analysis to make its geometric structure more reasonable, and the appropriate matching with the reinforcing ribs ensures the high rigidity of the basic parts.
Use high-rigidity and high-precision spindle from Taiwan KENTURN.
Use high-precision and high-strength ball screws from Taiwan.
The X, Y, and Z axes use Taiwan 45mm roller linear rails, and the slides are widened and enlarged. The roller heavy-duty linear rail can not only meet the customer's requirements for fast speed and high precision, but also can perform powerful cutting, while also increasing the service life.
The machine is equipped with a sealed guide rail protective cover to effectively protect the guide rails and screws and extend their service life.
The machine tool is equipped with three-dimensional full protection to ensure no vibration during strong chip cutting.
FANUC/SIEMENS/MITSUBISHI/SYNTEC/KND CNC operating system, paired with an absolute servo motor, ensuring high stability, fast speed, smooth surface, and high precision.
Double-pump automatic lubrication system: The guide rail lubrication uses a volume distributor with oil injection to supply the oil required for the guide rail regularly and quantitatively, reducing the waste of lubricating oil. The water tank is equipped with an oil-water separator to avoid environmental pollution.
High-precision pitch compensation. At the same time, advanced ballbar is used to optimize the accuracy when processing circles and curved surfaces.
u Equipment Parameters
| Item | Unit | VMC650 | VMC955 | VMC1160 |
| X, Y, Z-axis travel | mm | 700X450X500 | 900X550X550 | 1100X600X600 |
| Spindle center to column surface | mm | 535 | 625 | 675 |
| Spindle nose to table surface | mm | 120-620 | 120-670 | 120-720 |
| Z axis feed speed | mm/min | 1-10000 | 1-10000 | 1-10000 |
| Table size | mm | 900x460 | 1100x500 | 1200x600 |
| Max. table load | kg | 500 | 700 | 900 |
| T slot qty*width*distance | mm | 5x18x90 | 5x18x100 | 5x18x120 |
| Rapid feed speed | m/min | 24/36 | 24/36 | 24/36 |
| Spindle speed | r/min | 50-8000 | 50-8000 | 50-8000 |
| Spindle taper | BT40-150 | BT40-150 | BT40-150 | |
| Tool number | 24pcs | 24pcs | 24pcs | |
| Spindle servo motor power | kw | 7.5 | 7.5/11 | 11/15 |
| X, Y, Z-axis servo motor power | kw | βis12/3000*2/βis22/3000 | βis22/3000 | βis22/3000 |
| Control system | FANUC/SIEMENS/MITSUBISHI/SYNTEC/KND | |||
| Positioning accuracy | mm | 300/±0.005 | 300/±0.005 | 300/±0.005 |
| Repeated accuracy | mm | 300/±0.003 | 300/±0.003 | 300/±0.003 |
| Air source pressure | Mpa | 0.6 | 0.6 | 0.6 |
| Electrical capacity | kW | 19 | 19-25 | 25-30 |
| Overall dimensions (LxWxH) | mm | 2670x2078x1950 | 2800x2160x2300 | 3400x2420x2600 |
| Weight (about) | T | 5.2 | 6 | 8 |
