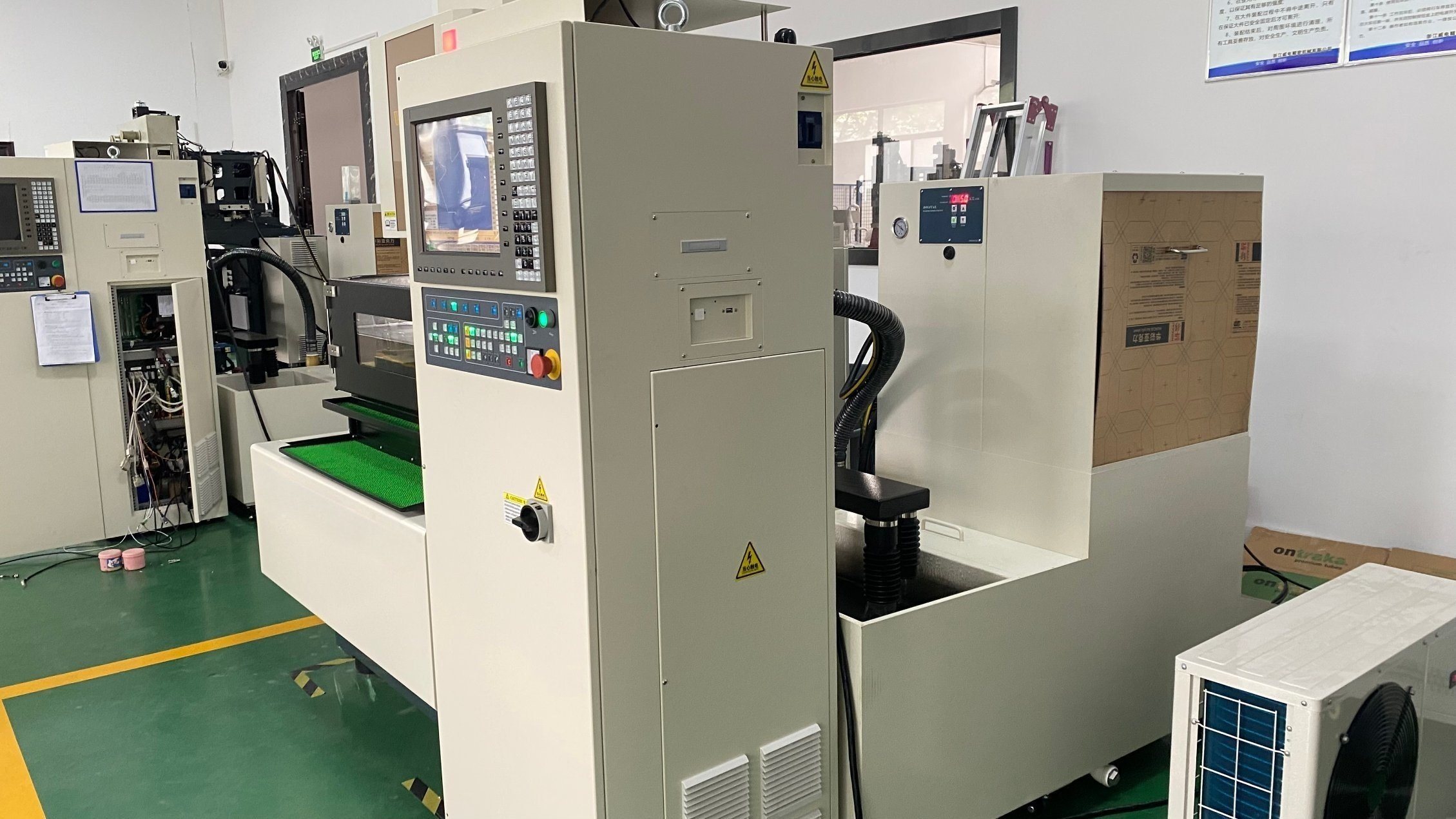

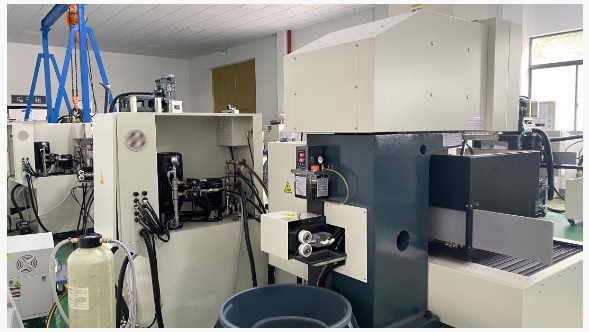

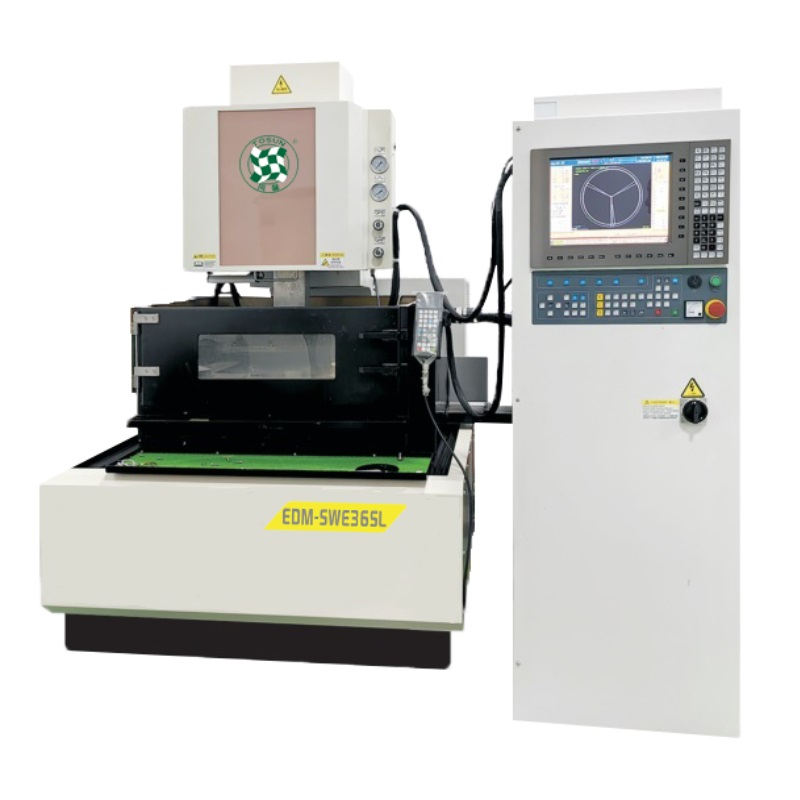

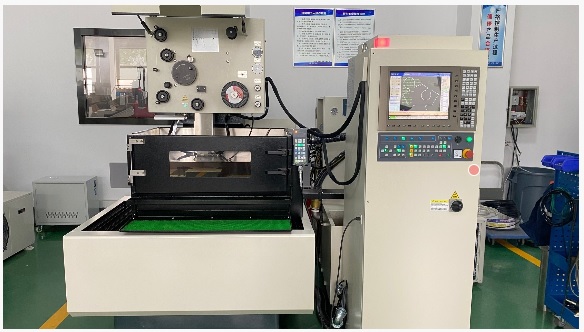

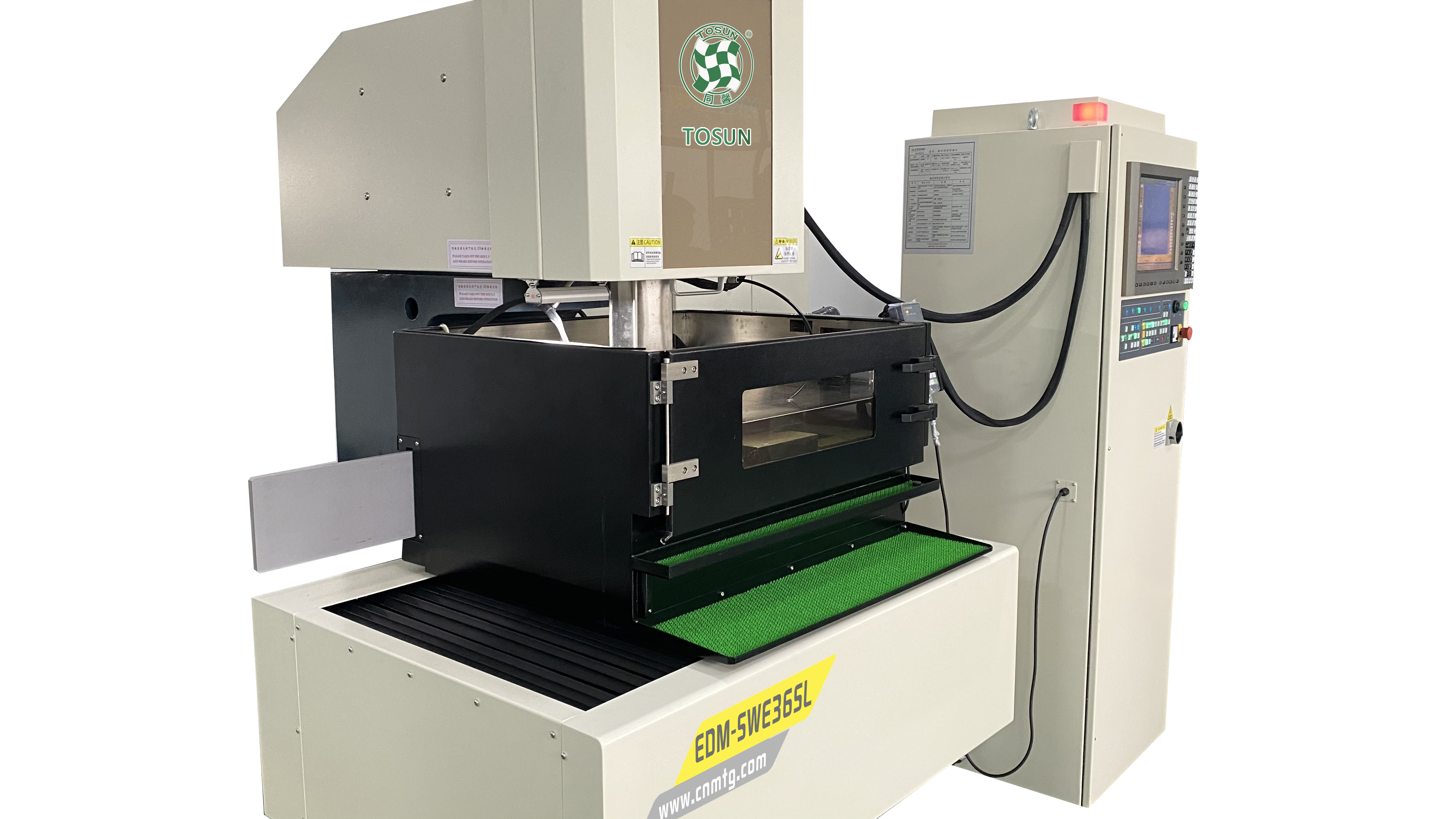

Equipment Features
Adopting Japanese STK technology and C-type high rigidity design, combined with high-strength main structure castings, to achieve high rigidity and thermal balance characteristics, ensuring the machine's ultra-high processing stability and accuracy.
Use the linear motor made of Japanese technology, which features non-contact, frictionless, no kinetic energy conversion and brings outstanding performances that are unparalleled in general screw drive, such as high-speed movement, fast response, vibration free, high positioning accuracy, and no back gap thus no need of replacing screws, realizing the unimaginable high-precision cutting and long-term low-cost processing.

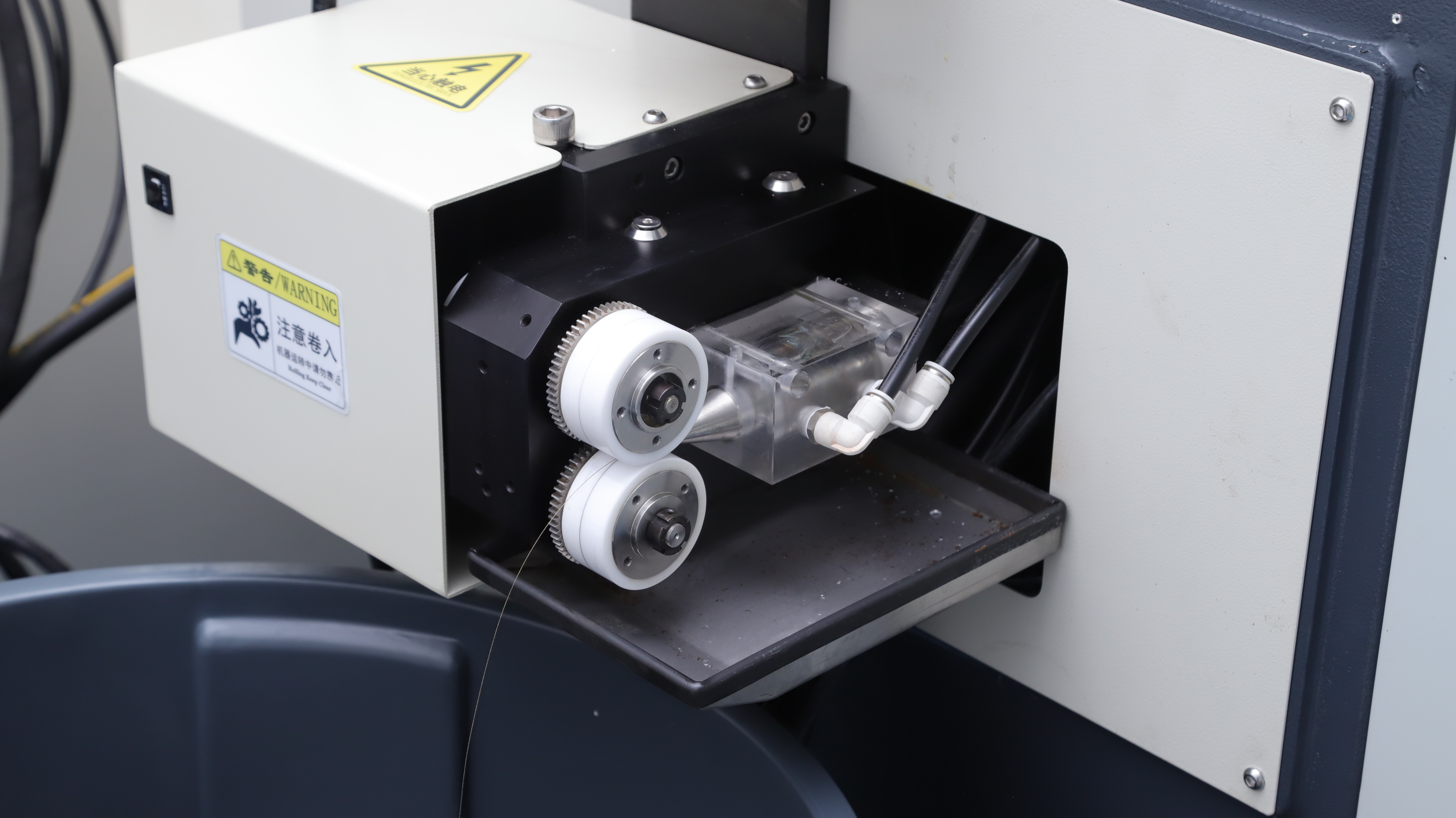

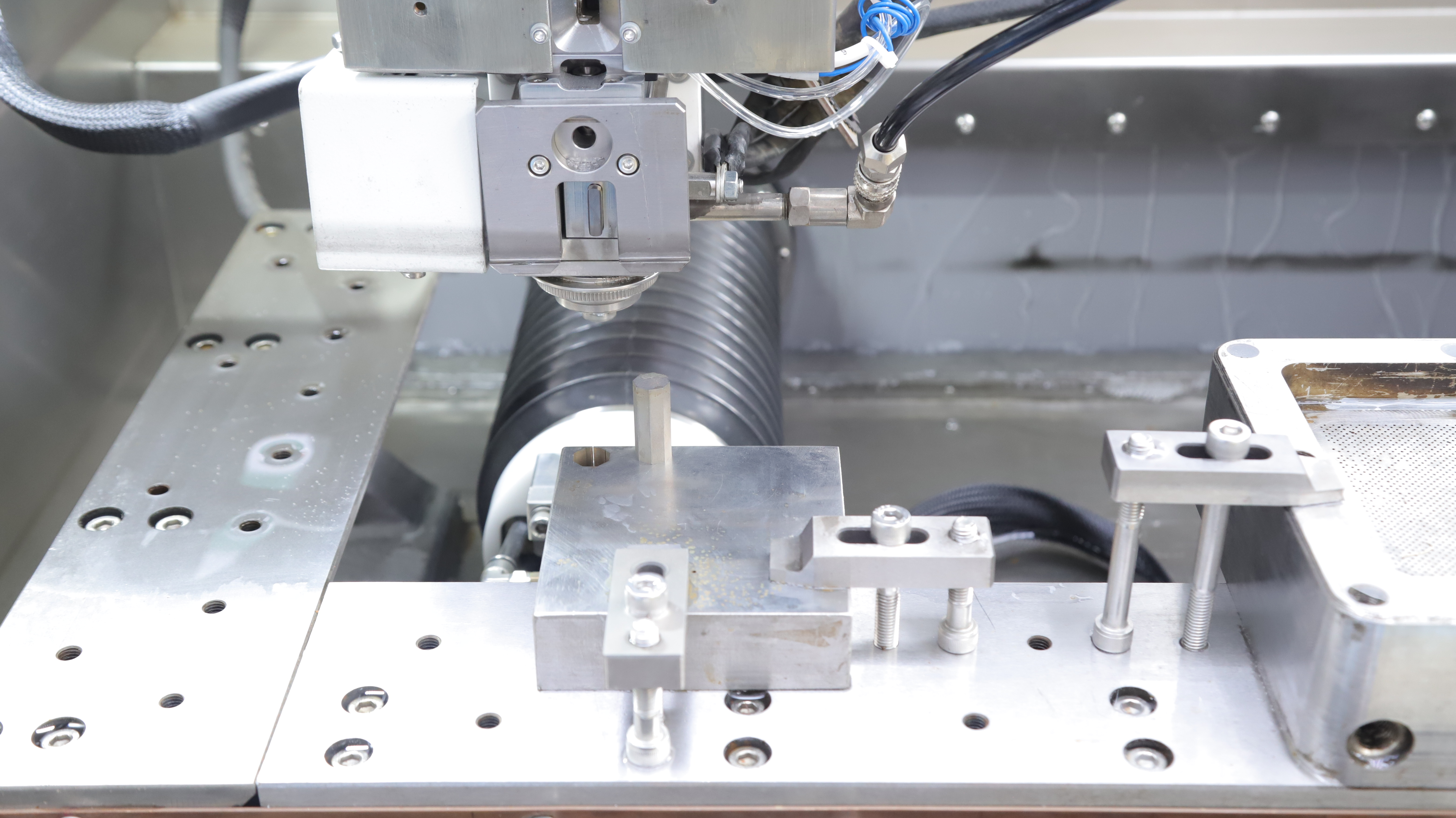

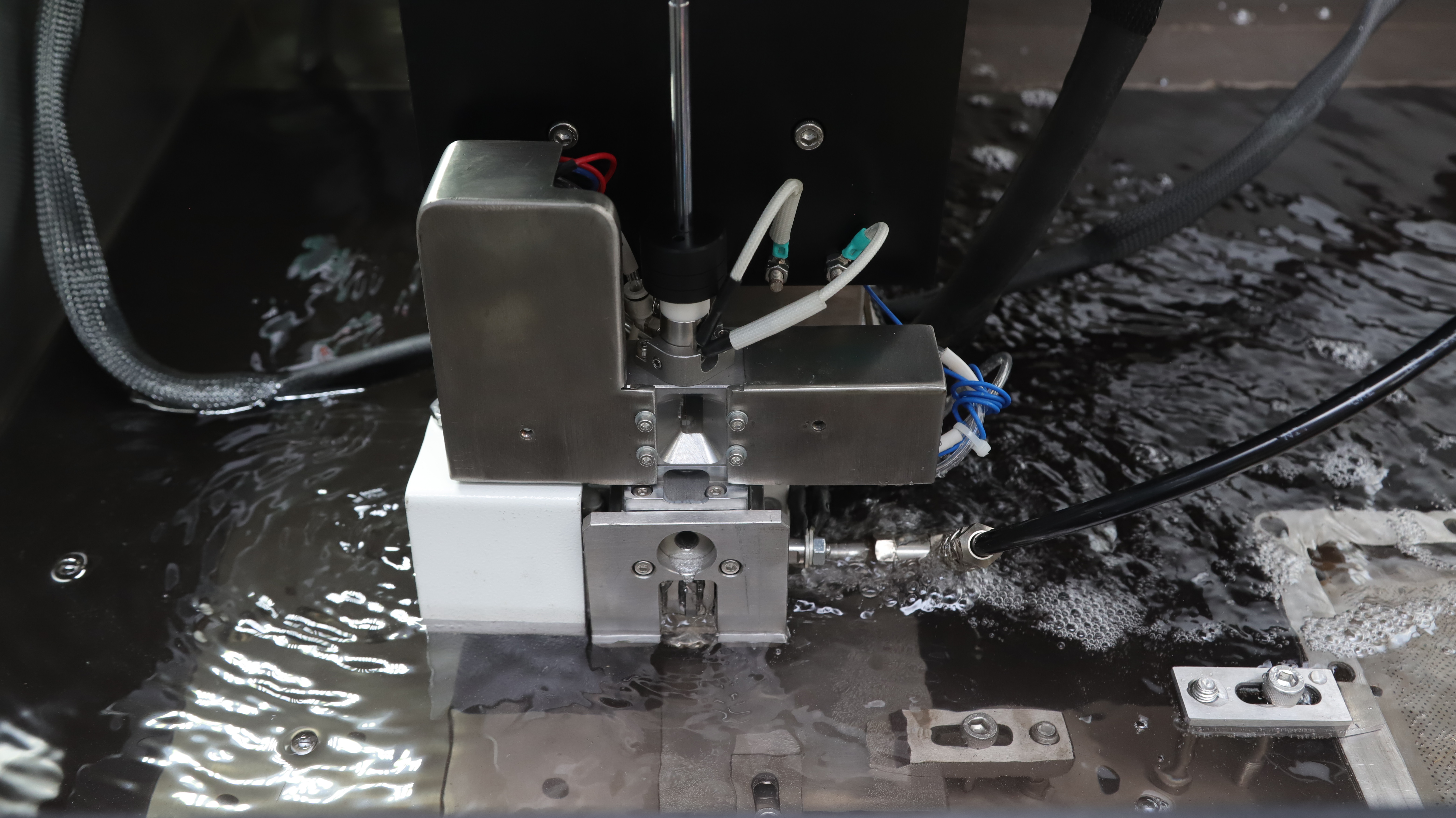

Automatic threading function. Paired with automatic threading, it can effectively reduce working time and can be threaded directly at the disconnection point without the need for water or air assistance. Even if the cutting thickness is high (100mm), there can be a success rate of over 90% in automatic threading (the success rate decreases proportionally with the increase of thickness). The starting threading hole needs to be 0.05mm larger than the wire diameter.

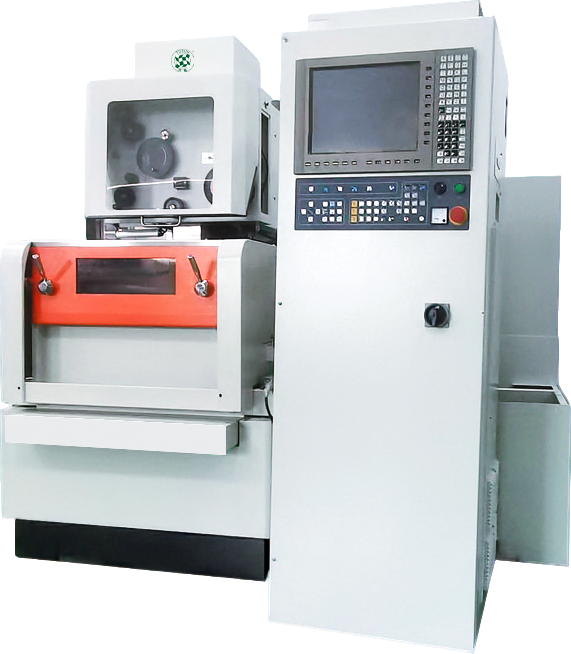

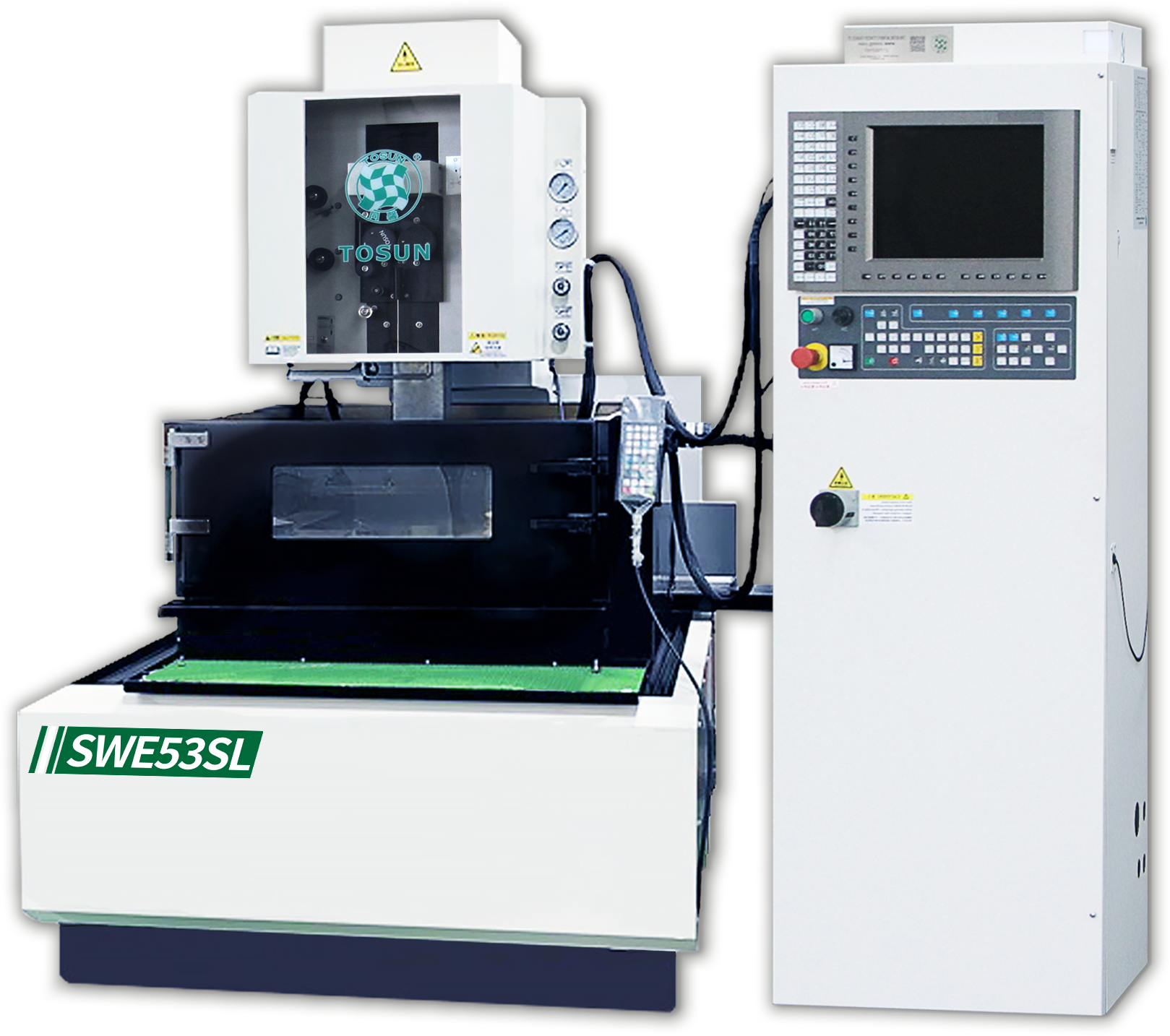

Equipment Specification

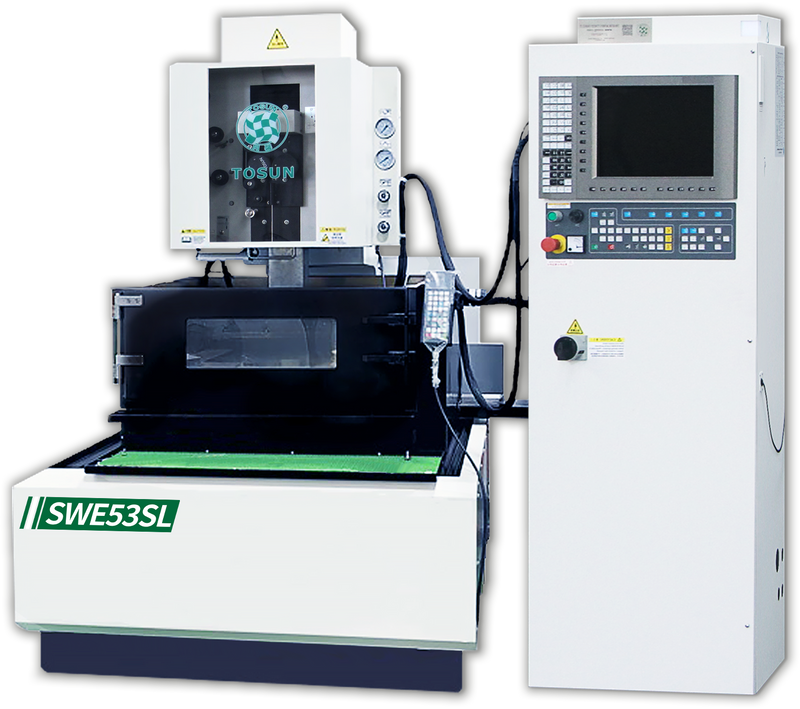

Item | Unit | SWE36SL | SWE53SL | SWE65SL | SWE85SL |
Max. Workpiece Size | mm | 680*600*200 | 800*600*200 | 1050*800*295 | 1200*800*295 |
Worktable Travel | mm | 360*250*220 | 500*300*220 | 650*500*300 | 800*500*295 |
Manual Feeding Rate of X, Y-axis | mm/min | Max. 800 | Max. 800 | Max.1500 | Max.1500 |
Motor System | Linear motor for X, Y-axis, | AC Servo Motor (5 axis) | |||
Max. Workpiece Weight | kg | 300 | 350 | 2000 | 3000 |
Wire Diameter (Standard) | mm | ф0.15-0.3 (ф0.25) | |||
Max. Wire Feeding Speed | mm/sec | 300 | |||
Line tension | gf | 300-2500 | |||
Max. Cutting Taper | °/mm | ±14.5°/80mm | ±15º/80mm | ±21˚/150mm DA+DB=15mm) | |
Machine Net Weight kg | kg | 2600 | 2800 | 7000 | 8000 |
Loop Mode | Power MOSFET Transistor | ||||
Max. Output Current | A | 25 | |||
Current Selection | 10 | ||||
Rest Time | 50 | ||||
Filter Capacity | L | 650 | 650 | 1700 | 2250 |

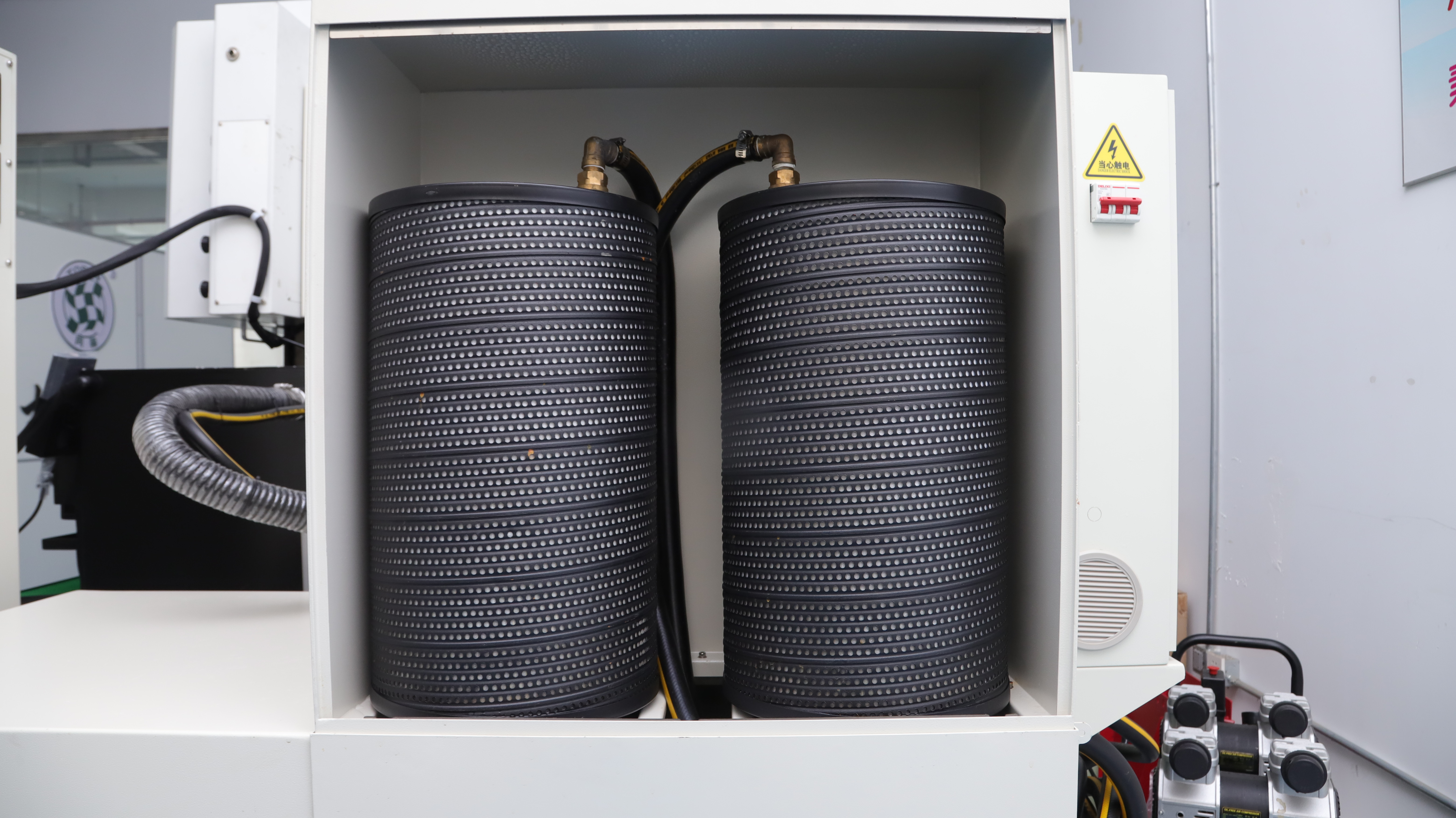

Filter Element | Paper | ||||
Ion Resin Filter | L | 12 | 14 | 30L*2 | 30L*2 |
Water Quality Control | Auto | ||||
Liquid Temperature Control | Auto | ||||
Input | Keyboard, USB | Keyboard, USB, LAN | |||
Display Screen | 15-Inch LED | ||||
Control System | Industrial 5-axis CNC Controller | ||||
Number of Controlled Axis | 5 | ||||
Setting Unit | mm | 0.001 | |||
Max. Command Value | mm | ±9999.99 | |||
Interpolation | Linear/Circular | ||||
Command | Relative/Absolute | ||||
Cutting Speed Control | Servo/Constant Speed/Speed Limit | Servo/Const. Feed | |||
Circular magnification | 0.001-9999.99 | ||||
Machining Condition Memory | 1000-9999 | ||||
Maximum Power Consumption | 3 Phase 220v/11KVA | 3Phase 220v/20KVA |
※ The above configuration and parameters are subject to change without prior notice.

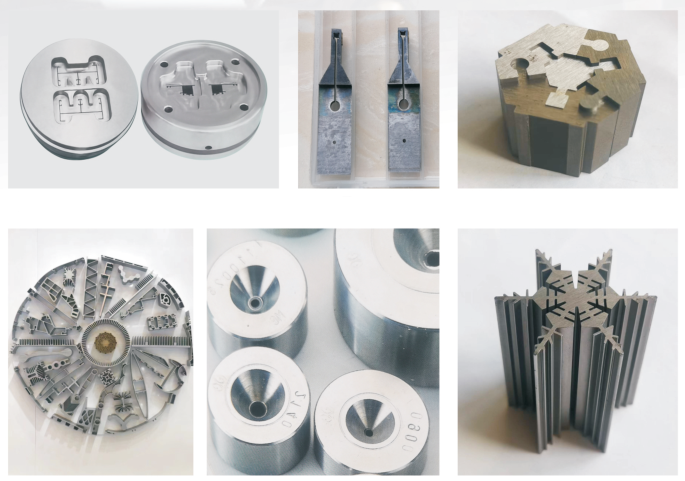

Cutting Samples
