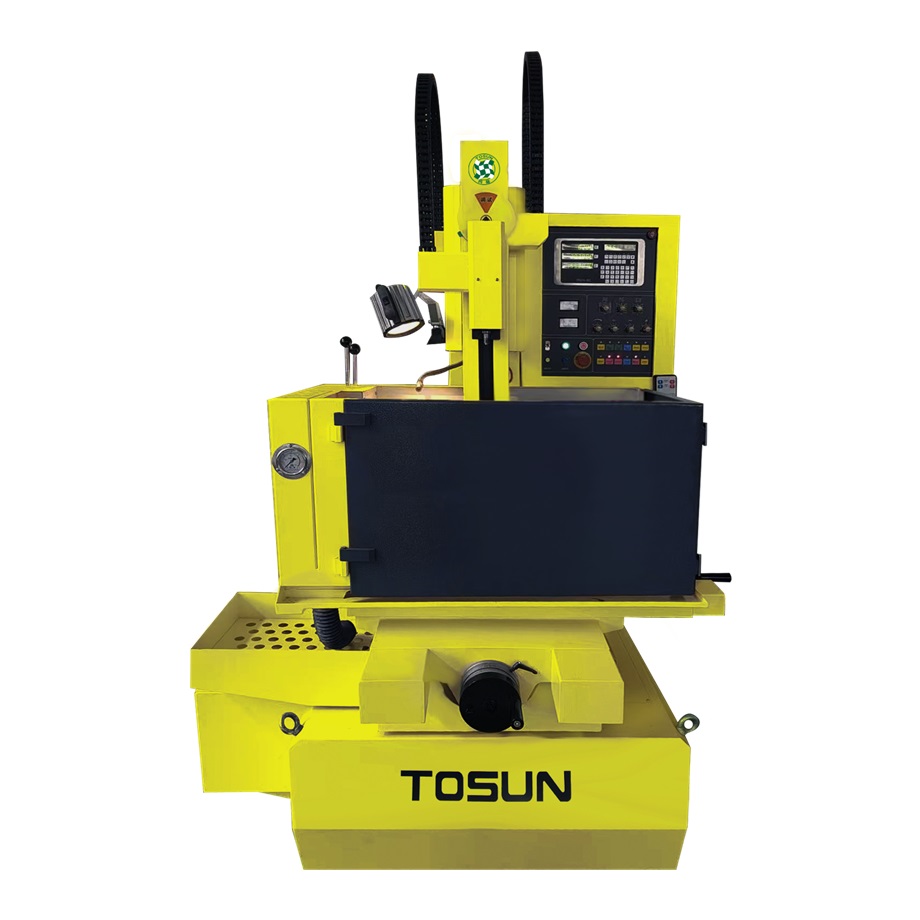

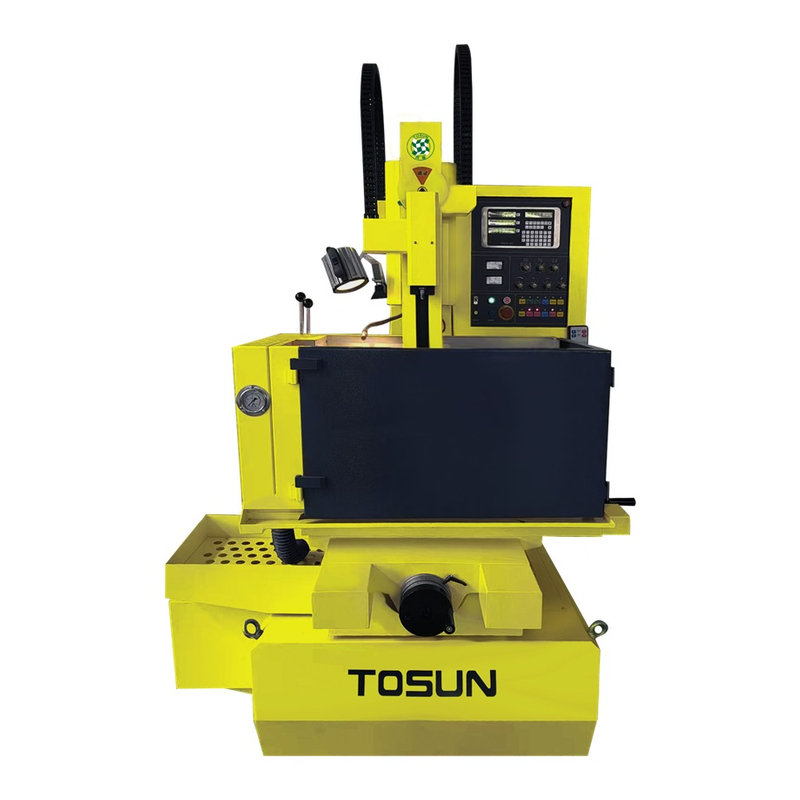

CARBIDE EDM SMALL HOLE DRILLING MACHINE

This machine utilizes a high-quality resin sand casting bed and precision ball screw assembly on the X,Y,Z,W-axis. It is capable of performing EDM blind hole depth machining.

Availability:

Quantity:



Inquire Add to Basket

Features:

High quality resin sand cast bed
X, Y, Z, W-axis precision ball screw
Z-axis HIWN linear guide
Z axis DC servo drive.
W-axis electric fast lifting
3-axis grating digital display device.
EDM blind hole fixed depth processing.
Immersion processing liquid tank
Special high-pressure water pump
Optional automatic processing

SJ ZNC EDM SMALL HOLE DRILLING MACHINE 703 Series

SJD703 Series EDM SMALL HOLE DRILLING MACHINE

SJ MULTI AXIS CNC EDM SMALL HOLE DRILLING

SJ704 SERIES CNC EDM SMALL HOLE DRILLING MACHINE

ECONOMICAL CNC EDM SMALL HOLE DRILLING MACHINE SJD703T

6-AXIS CNC EDM SMALL HOLE DRILLING MACHINE

CHINA NATIONAL MACHINERY & TECHNOLOGY (TIANJIN) CO., LTD

Subordinate Companies

JILIN SONGJIANG TECH-TRADE CO., LTD

http://www.chinainstrument.cn

SINO MACHINERY & EQUIPMENT CO., LTD

http://www.sinocnc.cn

My Links: Made-in-China.com

NPO VOSTOKMASH CO., LTD

https://vostokmash.ru/

ADD: CAAC Science&Technology Industrialization Base, No.225 Jing’er road, Airport Economic Zone, Tianjin, China
E-MAIL: sinocnc01@outlook.com sinocnc04@outlook.com
TEL: +86 22-58036272 FAX: +86 22-58036272-808
Copyright @2024 China National Machinery & Technology (Tianjin) Co., Ltd. All rights reserved.

Home

Site Map

Item	Unit	SJDY703
Worktable Dimension	mm	600*320
X/Y/Z Travel	mm	350200400
W-axis Travel	mm	400
Workpiece Height	mm	500
Axis Resolution	mm	0.005
Table bearing	kg	300
Diameter of Electrode Wire	mm	Ф0.15-3.0
Max Diameter to Deep Ratio		≥300(φ>0.3mm)
Working Fluid Pressure	Mpa	10
Processing Efficiency	mm/min	10-30
Max Working Current	A	30
Machine Weight	kg	1500
Machine Dimensions	mm	135014502100

Item	Unit	SJDY703
Worktable Dimension	mm	600*320
X/Y/Z Travel	mm	350200400
W-axis Travel	mm	400
Workpiece Height	mm	500
Axis Resolution	mm	0.005
Table bearing	kg	300
Diameter of Electrode Wire	mm	Ф0.15-3.0
Max Diameter to Deep Ratio		≥300(φ>0.3mm)
Working Fluid Pressure	Mpa	10
Processing Efficiency	mm/min	10-30
Max Working Current	A	30
Machine Weight	kg	1500
Machine Dimensions	mm	135014502100
