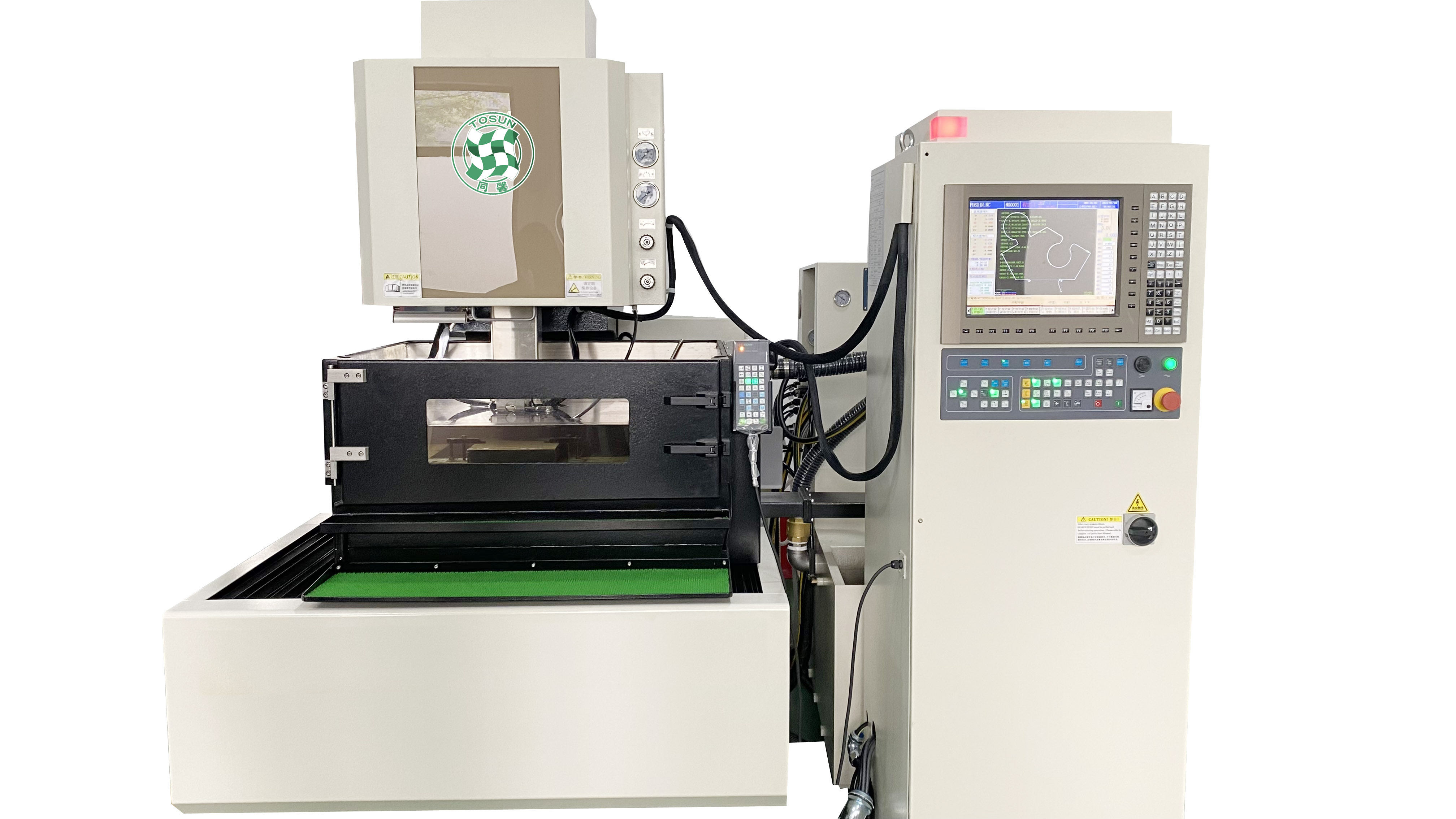

EDM-SWE

Super Type CNC EDM Wire Cutting Machine is designed for mass and high efficiency processing. Its processing efficiency is about 5%-10% higher than that of other similar machines. It has the characteristics of high efficiency, high processing accuracy, relatively good smmothness after multiple cutting, simple operations, and high processing consistency.
The equipment is suitable for cutting work pieces in large quantities.

Availability:

Quantity:


Inquire Add to Basket

Product Description

Equipment Specification:

Description	Unit	Specification	Specification	Specification	Specification
Modle		SWE36SL	SWE53SL	SWE65SL	SWE85SL
Worktable Travel (XYZ)	mm	360x250x220	500x300x220	650x500x300	800x500x300
Worktable Travel (UV)	mm	60x60	80x80	120x120	120x120
Max.Workpiece size	mm	680x600x200	800x600x220	1000x800x295	1200x800x295
Max.Workpiece Weight	kg	300	350	800	1000
Taper/Workpiece Height		±14.5°/80	±14.5°/80	±20°/100	±20°/100
Machine Dimensions(LxWxH)	mm	2200x2650x2200	2200x2650x2200	3200x3200x2200	3600x3200x2200
Machine Weight	kg	2600	2800	7200	7800
