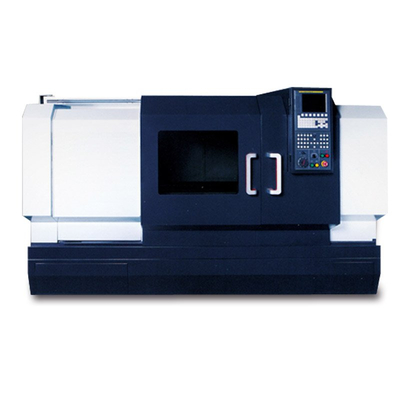

| Quantity: | |
|---|---|
| unit | CAK5085 | CAK50135 | CAK50186 | |
| Maximum workpiece length | mm | 890 | 1390 | 1900 |
| Maximum machining length | mm | 850 | 1350 | 1860 |
| Maximum swing diameter over bed | mm | φ500 | ||
| Maximum swing diameter of tool array plate | mm | φ300 | ||
| Maximum machining diameter | mm | φ500 | ||
| Type of spindle head and its code | A28 | |||
| Diameter of chuck | mm | φ250 | ||
| Spindle thru-bore diameter | mm | φ70 | ||
| Spindle speed series | Motor-driven third gear, no level in gear | Motor-driven third gear, no level in gear / Manual third gear, level 12 | Manual third gear, level 12 | |
| Range of spindle speed | r/min | 15-2200 | 15-2200 / 40-1800 | 40-1800 |
| Main motor power | kw | 7.5Main servo | 7.5Main servo / 6.5、8Double speed | 6.5、8Double speed |
| Diameter of tailstock quill | mm | φ75 | ||
| Stroke of tailstock quill | mm | 150 | ||
| Cutter frame | Vertical four working position | |||
| Outer cutter | mm | 25x25 | ||
| Fast moving speed of two axis | m/min | 6/12 | ||
| Workpiece precision | IT6-IT7 | |||
| Net weight of the Machine | kg | 2800 | 3000 | 3400 |
| Dimension(L*W*H) | mm | 2700x1700x1735 | 3250x1700x1735 | 3780x1700x1735 |
| unit | CAK63 | CAK80 | CAK100 | |||||||
| Maximum workpiece length | mm | 1000 | 1500 | 3000 | 1000 | 1500 | 3000 | 1000 | 1500 | 3000 |
| Maximum machining length | mm | 850 | 1350 | 2850 | 850 | 1350 | 2850 | 850 | 1350 | 2850 |
| Maximum swing diameter over bed | mm | φ630 | φ800 | φ1000 | ||||||
| Maximum swing diameter of tool array plate | mm | φ350 | φ520 | φ700 | ||||||
| Maximum machining diameter | mm | φ630 | φ800 | φ1000 | ||||||
| Type of spindle head and its code | A2-11 | |||||||||
| Diameter of chuck | mm | φ315 | φ315 | φ500 | ||||||
| Spindle thru-bore diameter | mm | φ104 | ||||||||
| Spindle speed series | hydraulic pressure fourth gear, no level in gear | |||||||||
| Range of spindle speed | r/min | 17-1000 | ||||||||
| Main motor power | kw | |||||||||
| Diameter of tailstock quill | mm | φ100 | ||||||||
| Stroke of tailstock quill | mm | 250 | ||||||||
| Cutter frame | Vertical four working position | |||||||||
| Outer cutter | mm | 32x32 | 40x40 | |||||||
| Fast moving speed of two axis | m/min | 6/10 | ||||||||
| Workpiece precision | IT6-IT7 | |||||||||
| Net weight of the Machine | kg | 5200 | 5500 | 6950 | 5400 | 5750 | 7150 | 5800 | 6150 | 7500 |
| Dimension(L*W*H) | mm | 3410x2010x1780 | 3860x2000x1780 | 5360x2010x1780 | 3410x2010x1780 | 3860x2010x1780 | 5360x2010x1780 | 3410x2250x1930 | 3860x2250x1930 | 5360x2250x1930 |
※ The above configuration and praameters are subject to change without prior notice
| unit | CAK5085 | CAK50135 | CAK50186 | |
| Maximum workpiece length | mm | 890 | 1390 | 1900 |
| Maximum machining length | mm | 850 | 1350 | 1860 |
| Maximum swing diameter over bed | mm | φ500 | ||
| Maximum swing diameter of tool array plate | mm | φ300 | ||
| Maximum machining diameter | mm | φ500 | ||
| Type of spindle head and its code | A28 | |||
| Diameter of chuck | mm | φ250 | ||
| Spindle thru-bore diameter | mm | φ70 | ||
| Spindle speed series | Motor-driven third gear, no level in gear | Motor-driven third gear, no level in gear / Manual third gear, level 12 | Manual third gear, level 12 | |
| Range of spindle speed | r/min | 15-2200 | 15-2200 / 40-1800 | 40-1800 |
| Main motor power | kw | 7.5Main servo | 7.5Main servo / 6.5、8Double speed | 6.5、8Double speed |
| Diameter of tailstock quill | mm | φ75 | ||
| Stroke of tailstock quill | mm | 150 | ||
| Cutter frame | Vertical four working position | |||
| Outer cutter | mm | 25x25 | ||
| Fast moving speed of two axis | m/min | 6/12 | ||
| Workpiece precision | IT6-IT7 | |||
| Net weight of the Machine | kg | 2800 | 3000 | 3400 |
| Dimension(L*W*H) | mm | 2700x1700x1735 | 3250x1700x1735 | 3780x1700x1735 |
| unit | CAK63 | CAK80 | CAK100 | |||||||
| Maximum workpiece length | mm | 1000 | 1500 | 3000 | 1000 | 1500 | 3000 | 1000 | 1500 | 3000 |
| Maximum machining length | mm | 850 | 1350 | 2850 | 850 | 1350 | 2850 | 850 | 1350 | 2850 |
| Maximum swing diameter over bed | mm | φ630 | φ800 | φ1000 | ||||||
| Maximum swing diameter of tool array plate | mm | φ350 | φ520 | φ700 | ||||||
| Maximum machining diameter | mm | φ630 | φ800 | φ1000 | ||||||
| Type of spindle head and its code | A2-11 | |||||||||
| Diameter of chuck | mm | φ315 | φ315 | φ500 | ||||||
| Spindle thru-bore diameter | mm | φ104 | ||||||||
| Spindle speed series | hydraulic pressure fourth gear, no level in gear | |||||||||
| Range of spindle speed | r/min | 17-1000 | ||||||||
| Main motor power | kw | |||||||||
| Diameter of tailstock quill | mm | φ100 | ||||||||
| Stroke of tailstock quill | mm | 250 | ||||||||
| Cutter frame | Vertical four working position | |||||||||
| Outer cutter | mm | 32x32 | 40x40 | |||||||
| Fast moving speed of two axis | m/min | 6/10 | ||||||||
| Workpiece precision | IT6-IT7 | |||||||||
| Net weight of the Machine | kg | 5200 | 5500 | 6950 | 5400 | 5750 | 7150 | 5800 | 6150 | 7500 |
| Dimension(L*W*H) | mm | 3410x2010x1780 | 3860x2000x1780 | 5360x2010x1780 | 3410x2010x1780 | 3860x2010x1780 | 5360x2010x1780 | 3410x2250x1930 | 3860x2250x1930 | 5360x2250x1930 |
※ The above configuration and praameters are subject to change without prior notice
